Introduction
A 100G optic purchase goes wrong when the part number is chosen before the fibre plant. That is expensive in Dubai Internet City data centres and Abu Dhabi industrial SCADA networks, where a spare must work first time. QSFP28 describes the cage; it does not define the fibre count or cable type.
Start with the installed cable, the measured link loss and the reach. Then choose the optical architecture. SR4 remains the sensible high-density choice inside an OM4-equipped room. LR4 earns its price when a duplex single-mode circuit genuinely needs 10 km. CWDM4 fits the large middle ground on duplex SMF, while PSM4 is useful only where parallel single-mode cabling is already a deliberate part of the design. Treating them as interchangeable 100G modules invites repatching, failed light levels and awkward maintenance windows.
Technical operating principles and optical budget

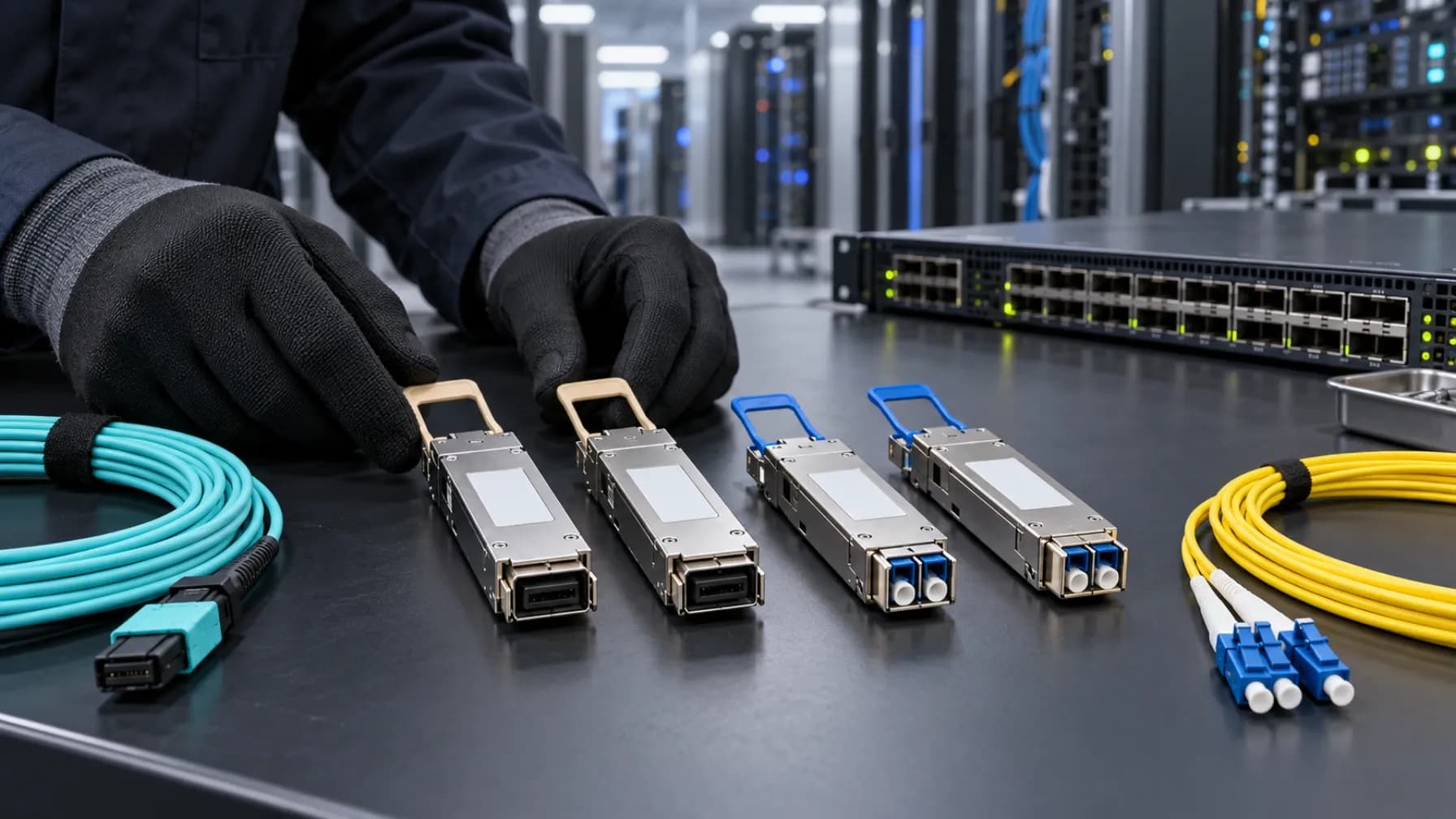

SR4 sends four 25 Gb/s lanes at 850 nm over four transmit and four receive fibres, normally through an MPO/MTP interface. Its strength is port density on existing OM3 or OM4 structured cabling; its weakness is the eight-fibre path and short reach. LR4 and CWDM4 multiplex four wavelengths onto one duplex single-mode pair. LR4 is the IEEE 100GBASE-LR4 choice for up to 10 km, while CWDM4 MSA optics commonly cover up to 2 km at lower module cost. PSM4 instead uses four 1310 nm lanes over parallel single-mode fibres, again with an eight-fibre MPO/MTP path.
Do not approve a link from reach alone. Calculate optical margin from the module data sheet:
$P_{\text{budget}} = P_{\text{Tx_min}} - S_{\text{Rx_sens}}$
Subtract fibre attenuation, connector and patch-panel loss, plus a reserve for ageing. A link that merely passes at commissioning is not a design. In hot racks and dusty patch fields, leave margin and establish DOM/DDM alarms below the vendor's warning limits. For related short-reach stocking, see the Strinex 10G/25G optical transceiver range; the same discipline applies at 100G.
Comparison matrix
| Parameter | Strinex Alpha Bridge | FS.com Equivalent | Cisco OEM | Generic / Refurbished |
|---|---|---|---|---|
| Optical architecture | Select SR4, LR4, CWDM4 or PSM4 to suit the circuit | Select the exact architecture, not only “100G QSFP28” | Match the Cisco-qualified optical mode | Label alone is insufficient evidence |
| Fibre and connector | SR4/PSM4: MPO/MTP; LR4/CWDM4: LC duplex | Confirm connector polarity and fibre class | Follow the platform optic matrix | Inspect connector type and polarity before use |
| Reach | Validate measured loss against the module budget | Validate data sheet against installed plant | Use the supported reach as a ceiling, not a guarantee | Treat stated reach as unverified until tested |
| Host behaviour | EEPROM coding and DOM checked before dispatch | Check host coding option | Highest qualification assurance, usually highest cost | Risk of inconsistent EEPROM, alarms and warranty |
| UAE support | Local engineering check and Dubai stock where available | Confirm lead time and return route | Confirm local channel availability | Confirm provenance, cleaning and return terms |
The matrix does not make OEM optics mandatory. It makes validation mandatory. A compatible optic with known coding and measured margin is preferable to an untested part in a critical uplink.
Interoperability and host validation
Cisco Nexus and Catalyst, Juniper QFX, Arista 7050/7280 families and MikroTik routers can all host QSFP28 optics, but each platform has its own support matrix, EEPROM policy and alarm presentation. Confirm the exact chassis, line card and network operating system release before buying. A QSFP28 port may also offer breakout modes that change what the host expects from the optic and cable.
Insert a single sample module first. Record vendor name, serial number, temperature, voltage, Tx power and Rx power on both ends. Then bring the production pair up at the intended FEC setting. The 25G SFP28 forward error correction guide explains why host-side error correction still matters even though 100G lane arrangements differ. Review the switch log after a sustained traffic test; a clean link LED does not prove that the host accepts the module without intermittent faults.
For diagnostics interpretation, use the SFF-8472 DOM/DDM field guide. QSFP28 telemetry follows related management concepts, but thresholds and page layouts remain module-specific. Baseline each installed link, then alert on drift rather than waiting for a hard low-power alarm.
Field deployment and maintenance
Preserve fibre geometry during installation. Keep patch leads above a $30\text{ mm}$ bend radius unless the specific cable data sheet allows less, and do not use a tight rack door or cable arm to make the bend for you. MPO polarity deserves a documented method: confirm Type A, B or C mapping and test all lanes. One reversed trunk can leave a four-lane SR4 or PSM4 circuit dead while the physical connection looks correct.
Clean every mating surface before insertion. IEC 61300-3-35 inspection criteria are a useful acceptance standard: inspect first, clean with approved lint-free tools, inspect again, then connect. Do not wipe a contaminated ferrule and assume the job is done. Record optical readings at commissioning, retain a spare of the exact optical mode, and replace patch cords that show repeatable loss or damaged latches.
Recommended diagnostic utilities and testing tools
- Fluke Networks FiberInspector Pro for inspecting LC and MPO end faces before connection.
- EXFO MaxTester 720C OTDR for locating events and verifying single-mode fibre span loss.
- Viavi SmartClass Fiber OLP-87 for paired optical power and loss measurements during acceptance testing.
Frequently asked questions
Should I choose SR4 for every short 100G link?
Choose SR4 when the route already has suitable OM3 or OM4 parallel multimode cabling and the measured distance fits the selected module specification. It is usually the practical in-room option. Do not install SR4 simply because it is inexpensive if your path ends at LC duplex single-mode panels.
When is LR4 worth the additional cost?
LR4 is appropriate for duplex single-mode links that need its longer reach and optical margin, including campus or building-to-building circuits. It is usually excessive for a 100 m intra-data-centre run. A 2 km CWDM4 module may be the better fit when the route and budget support it.
Can CWDM4 and LR4 connect to each other?
No. Both use duplex single-mode fibre, but their wavelength plans, optical specifications and standards are different. Use identical optical modes at both ends unless the module vendors explicitly document an interoperable pair.
Does PSM4 use the same cabling as SR4?
Both usually use an eight-fibre parallel path and an MPO/MTP connector, but SR4 uses multimode fibre at 850 nm while PSM4 uses single-mode fibre around 1310 nm. The connector similarity does not make the optics compatible. Verify fibre type and polarity before insertion.
How much optical margin should a 100G link retain?
Calculate it from the selected module's minimum transmit power and receiver sensitivity, then subtract the full measured channel loss. Keep reserve for connector contamination, ageing and future repatching. The correct number comes from the optic and cabling data sheets, not a universal rule of thumb.
Key takeaways and UAE selection checklist
- Choose the optical mode from the installed fibre type, connector system, lane count and measured channel loss.
- Use SR4 for qualified parallel multimode paths; use LR4 or CWDM4 for duplex single-mode paths; use PSM4 only with intentional parallel single-mode infrastructure.
- Validate one sample on the exact Cisco, Juniper, Arista or MikroTik host before committing to a batch.
- Set DOM/DDM baselines at commissioning and investigate gradual optical-power drift.
- Protect the physical layer with documented MPO polarity, ferrule inspection and bend control.
Conclusion and local UAE procurement
The right 100G QSFP28 form factor follows the cable plant. SR4 suits short parallel multimode links, LR4 protects long duplex single-mode circuits, CWDM4 covers much of the medium-reach duplex market, and PSM4 belongs on engineered parallel single-mode infrastructure. Check the optical budget, the host matrix and the connector path before a purchase order reaches the warehouse.
For urgent replacements, provide the reach, fibre type, connector and host platform so the team can validate against local Dubai stock and same-day dispatch availability. Browse the live Strinex optical transceiver product page with the switch model and link-loss measurements.
