Alpha Bridge ASFP-1G-SX

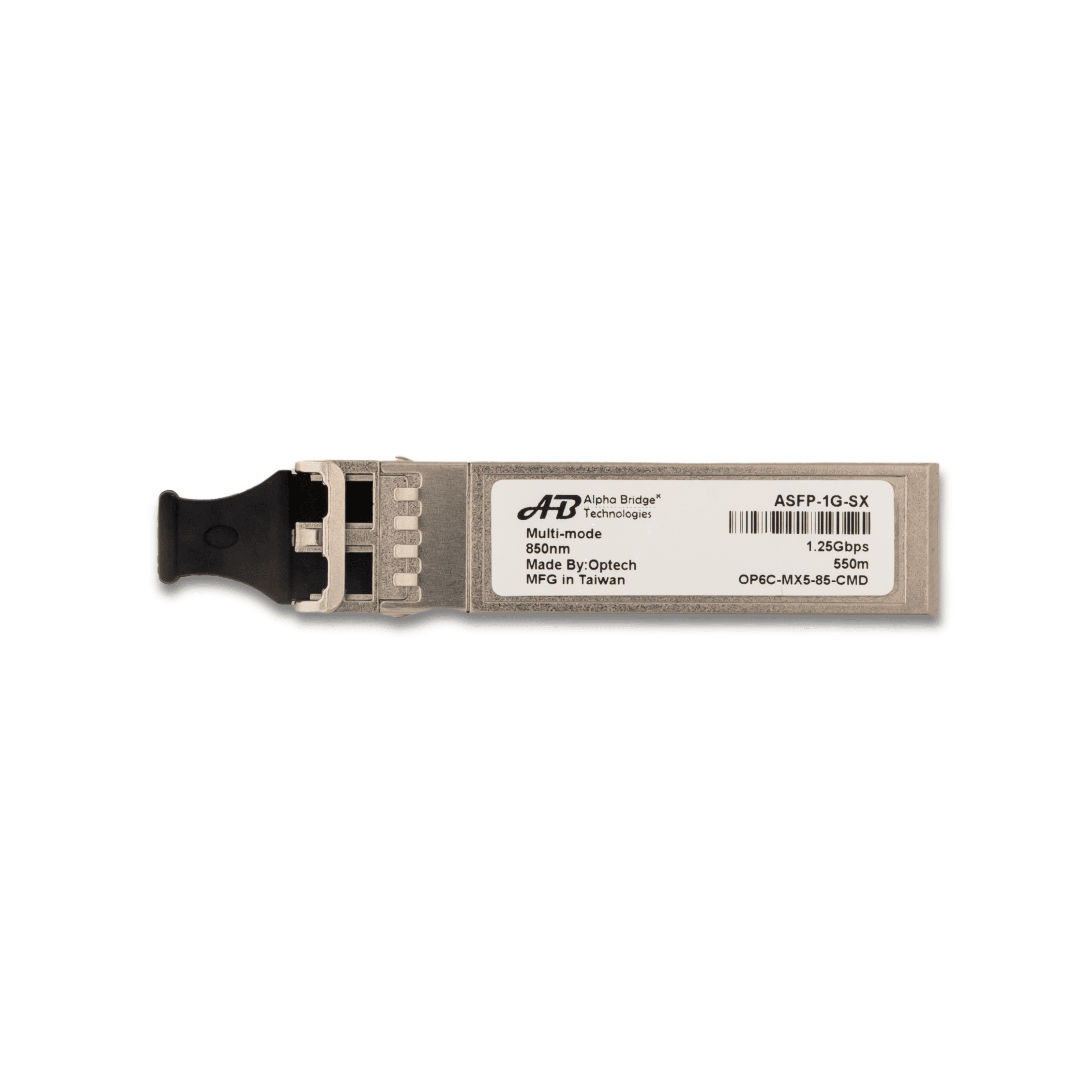

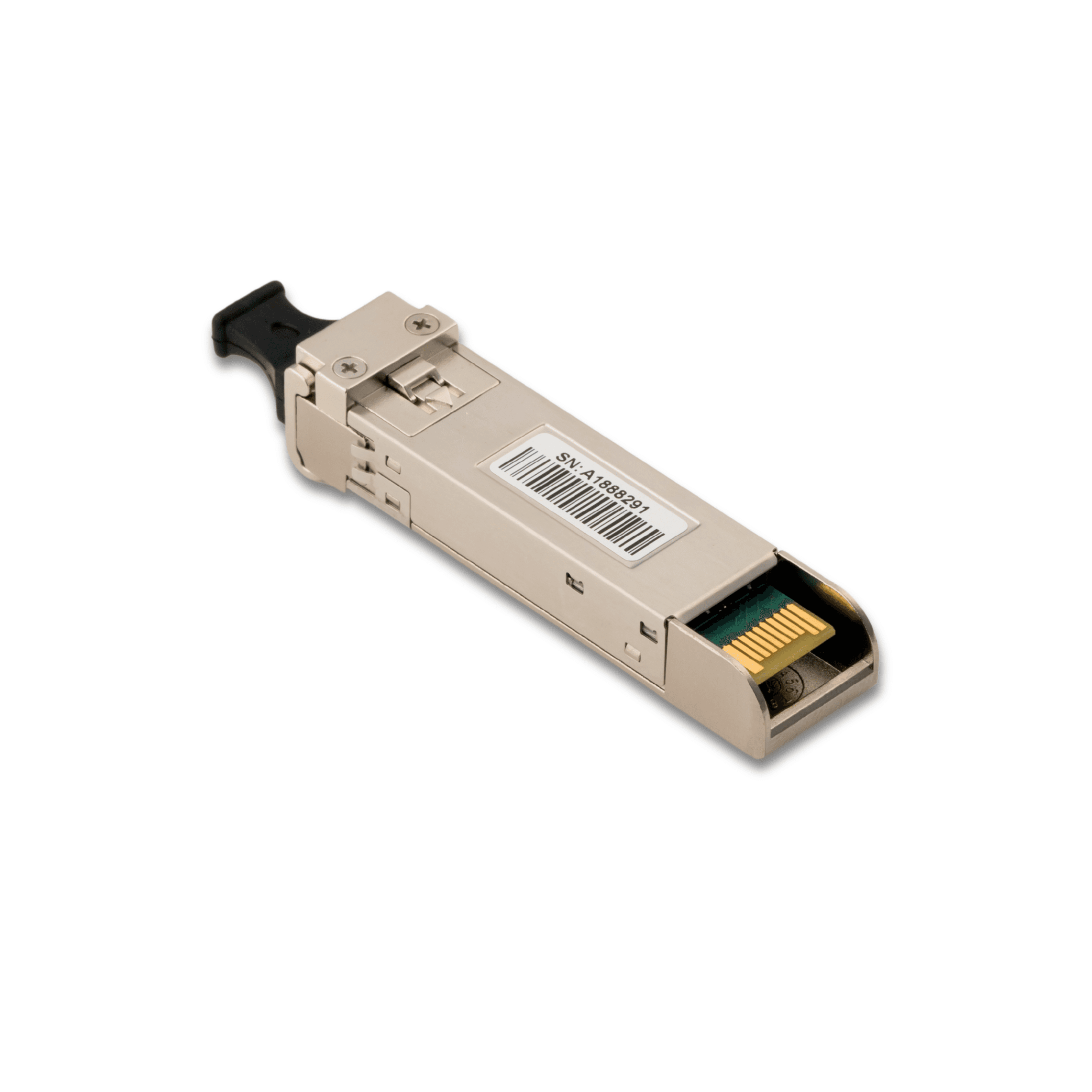

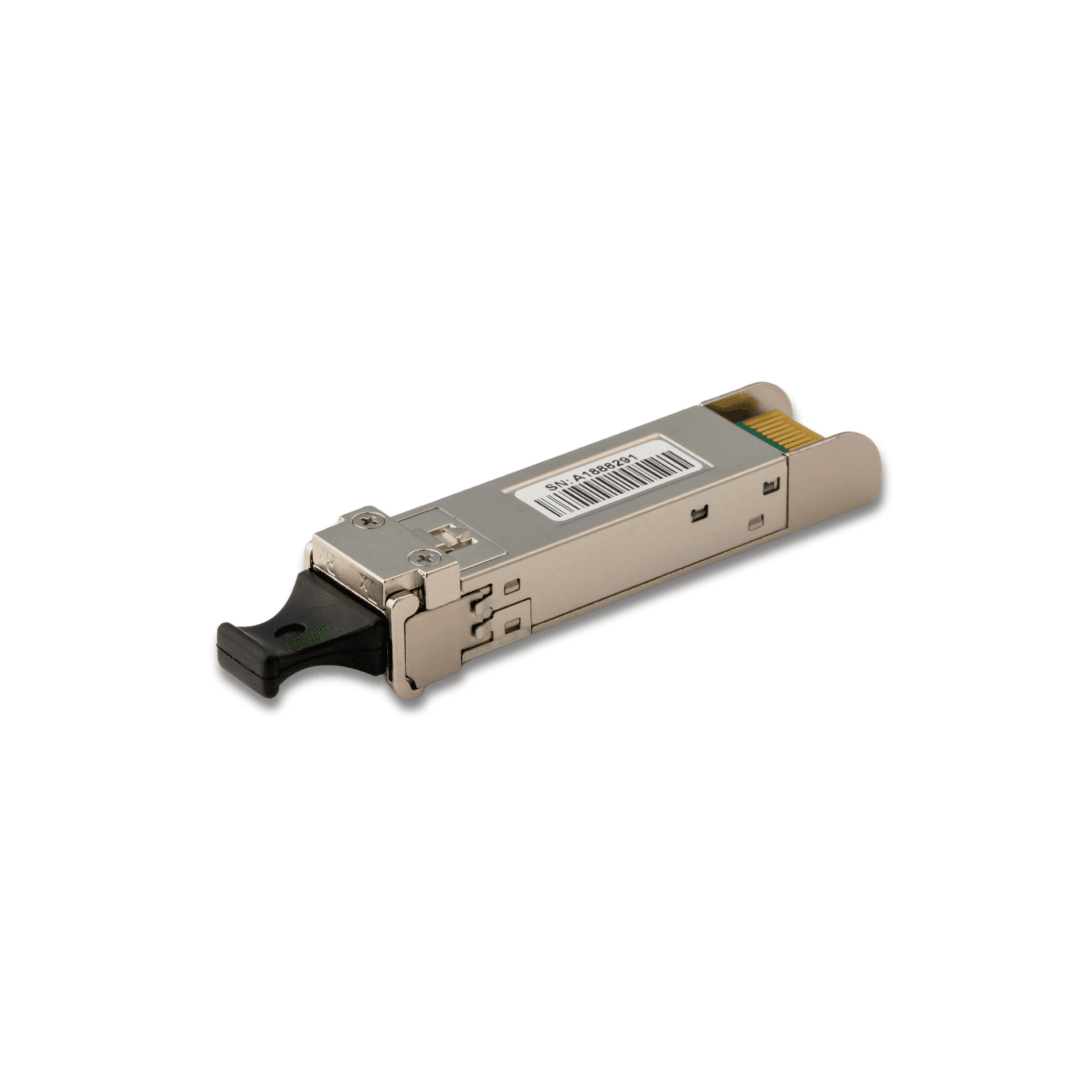

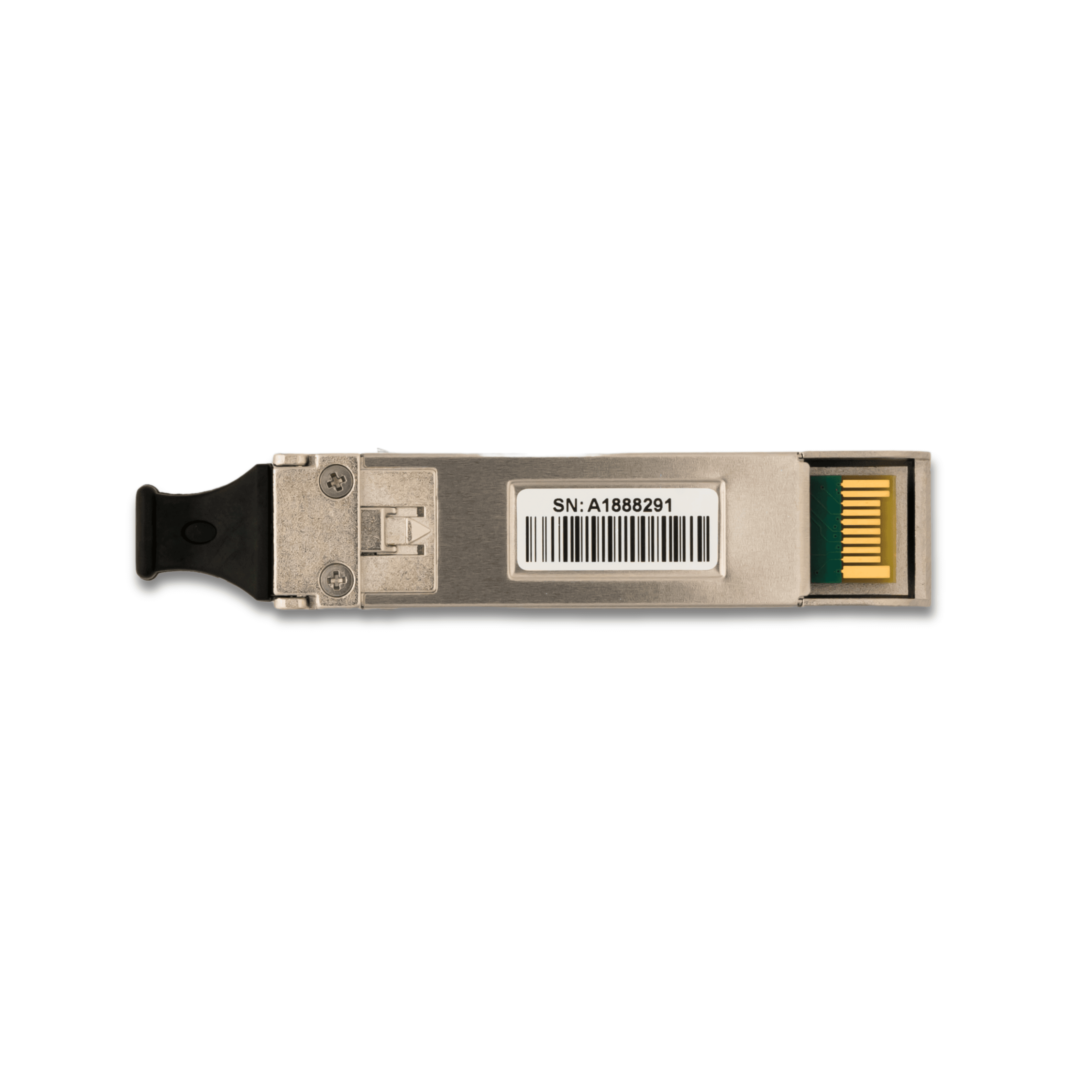

Alpha Bridge Technologies ASFP-1G-SX Optical Transceiver, SFP, 850nm, 550m, LC Duplex Connector.

3 units available

📍 STRINEX Fullfillment Center - Dubai

AED 79.00

1-Year Warranty

15-Day Returns

15-Day Exchange

Quantity

Ready to Purchase?

Product Highlights

Premium features & specifications

Enterprise Grade

The Alpha Bridge ASFP-1G-SX Optical Transceiver (SFP) is a high-performance solution tailored for distributed multi-processing. Conforming to IEEE 802.3z Gigabit Ethernet standards, it ensures reliability and compatibility. Enhance your network performance with the Alpha Bridge ASFP-1G-SX, providing robust connectivity and efficiency for your infrastructure.

ADVANCED TECHNOLOGY : Industry-standard SFP transceiver, compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel 100-MS-SN-I/100-M6-SN-I under the SFP Multi-Source Agreement.

PERFORMANCE : 850nm VCSEL laser supports up to 550m transmission over multimode fiber, ideal for switch-to-switch interfaces and high-speed I/O for file servers.

CONNECTIVITY & DIAGNOSTICS : Features differential LVPECL I/O, a duplex LC connector, and a TTL signal detect indicator for robust data communication.

POWER & MONITORING : Operates on a 3.3V power supply with low power consumption, 860nm wavelength operation, and hot-pluggable design for easy deployment.

SAFETY & COMPLIANCE : Class 1 laser, RoHS compliant, meets EN 60825-1 standards, with TTL-level diagnostics for real-time signal detection and system reliability.

Technical Specifications

Brand

ALPHA BRIDGE TECHNOLOGIES

Package Dimensions

95mm*47mm*20mm(L*B*H)

Manufacturer

ALPHA BRIDGE TECHNOLOGIES

Item Weight

40 Grams

Product:

ASFPP-1G-SX

Vendor:

ABTPL

Form type:

SFP

Data Rate:

1Gbps

Wavelength:

850nm

Reach:

550m

Source:

VCSEL+PIN

Cable Type:

MMF

Connector:

LC Duplex

TX Power:

-9.5~-4dBm

RX Sens:

<-18dBm

Temperature:

0°C to 70°C

DDM:

yes

Compatibility:

MSA

Connectivity Solutions

Our optical transceivers provide reliable connectivity solutions for various network architectures.

Data Center

High-performance connectivity for modern data center environments with enterprise-grade reliability.

Enterprise Network

Reliable solutions for enterprise networking infrastructure with seamless integration.

Key Features

High-speed data transmission up to 1Gbps

Extended reach up to 10km on single-mode fiber

Hot-pluggable SFP form factor

Low power consumption

Digital diagnostic monitoring

RoHS compliant

Operating temperature: -40°C to +85°C

Questions & Answers

Q: What is the maximum transmission distance?

A: The ASFP-1G-LX supports transmission distances up to 10km on single-mode fiber.

Q: Is this compatible with Cisco equipment?

A: Yes, this transceiver is MSA compliant and compatible with major networking equipment manufacturers including Cisco, Juniper, HP, and others.

Download Resources

Data Sheet Alpha Bridge ASFP-1G-SX
