Alpha Bridge ASFP-1G-LX

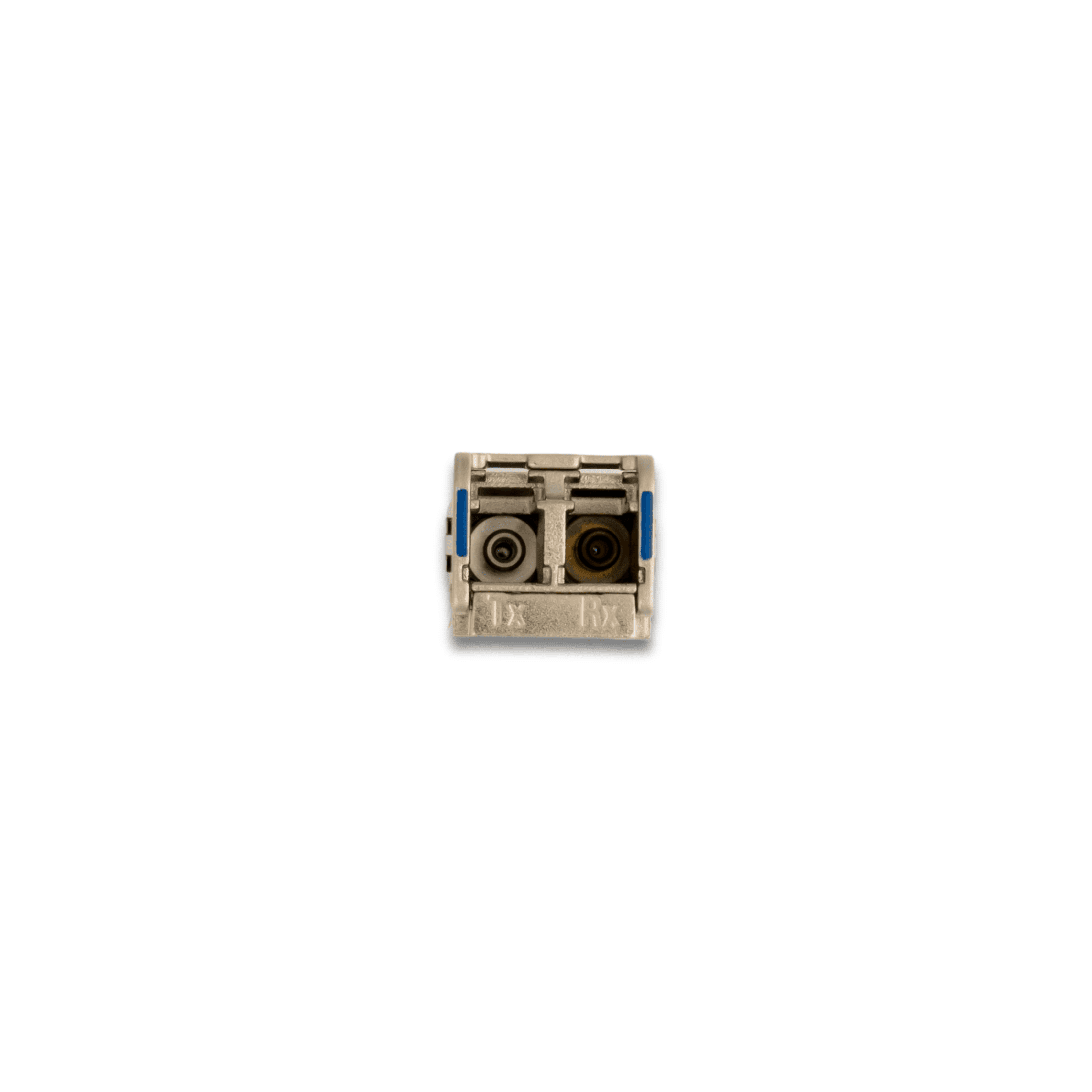

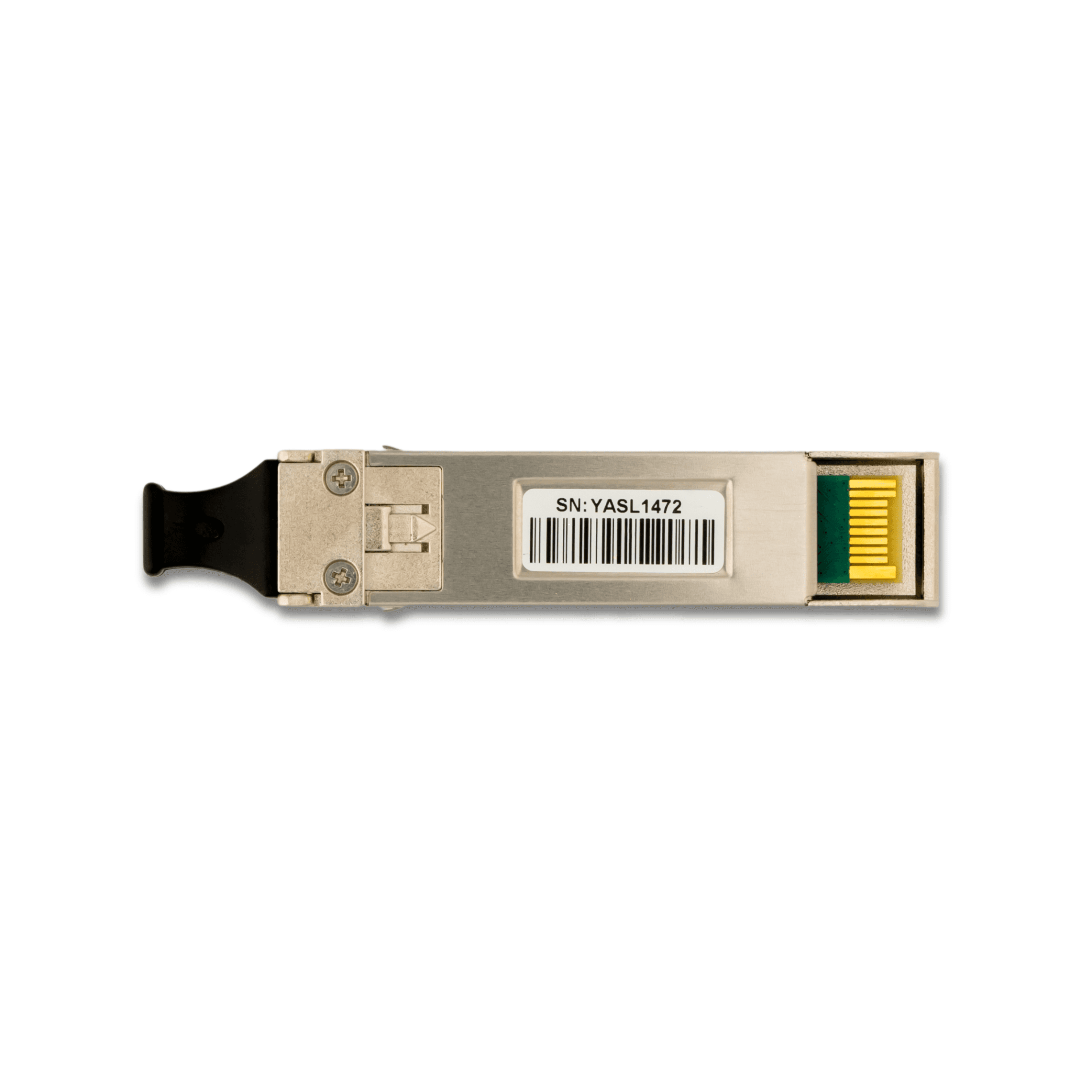

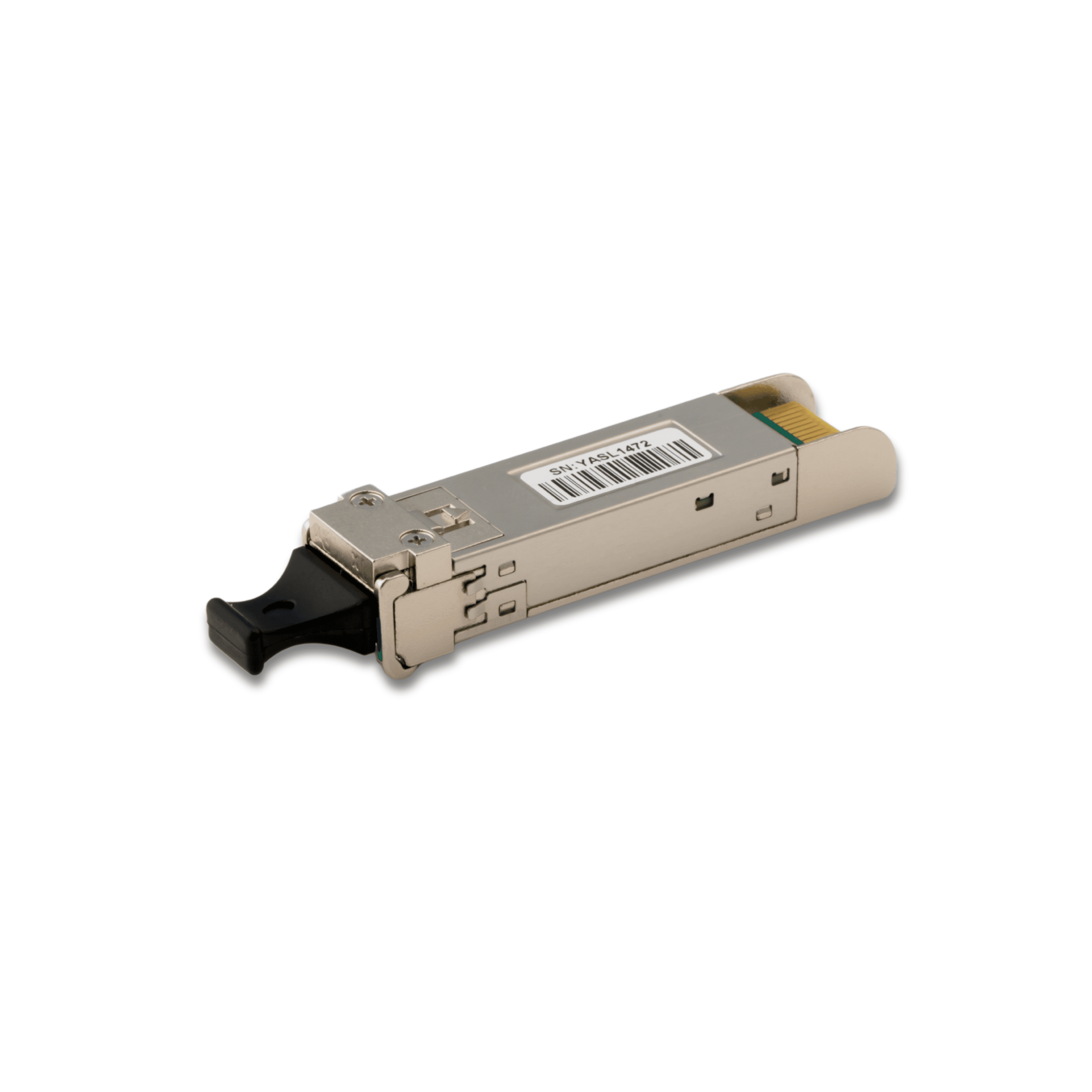

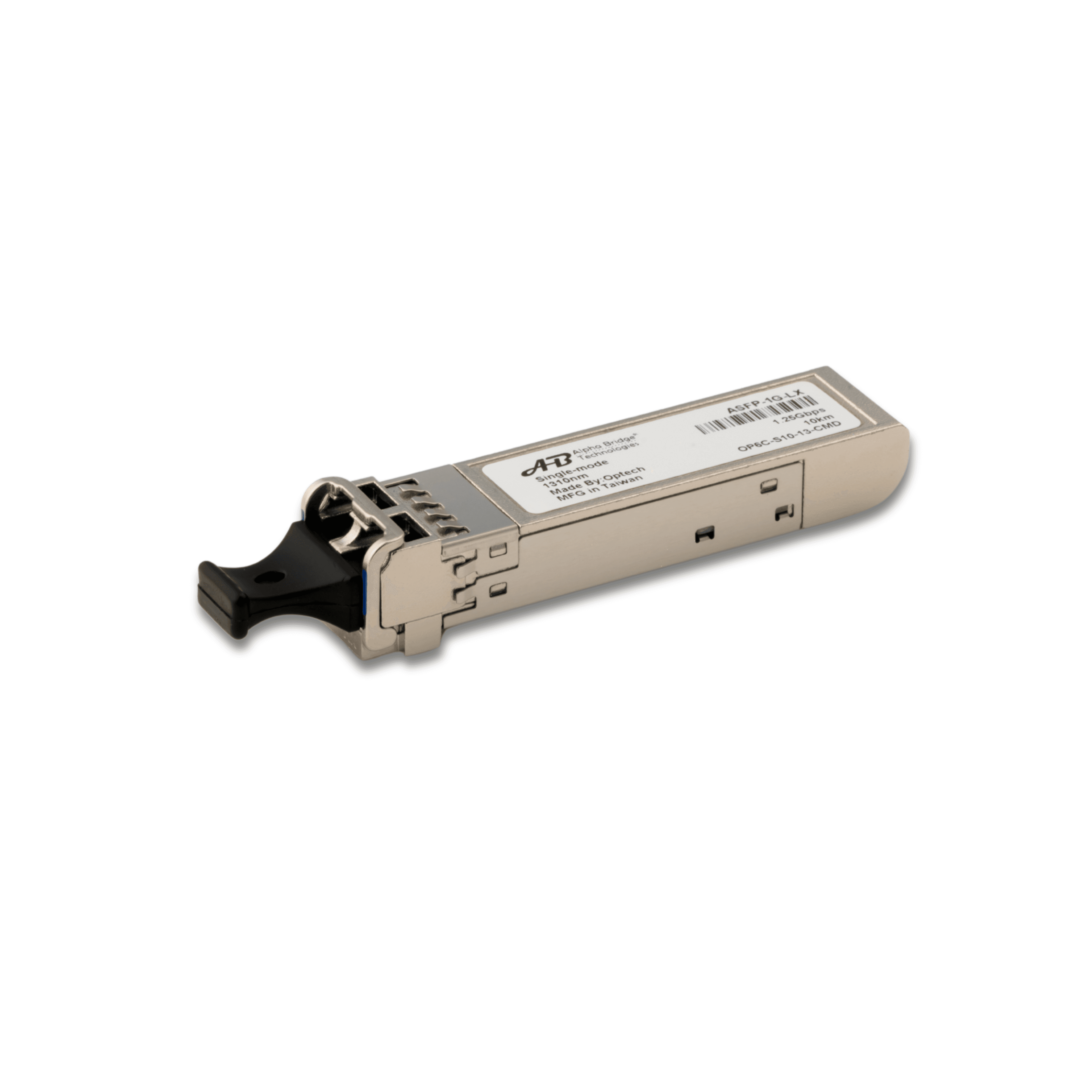

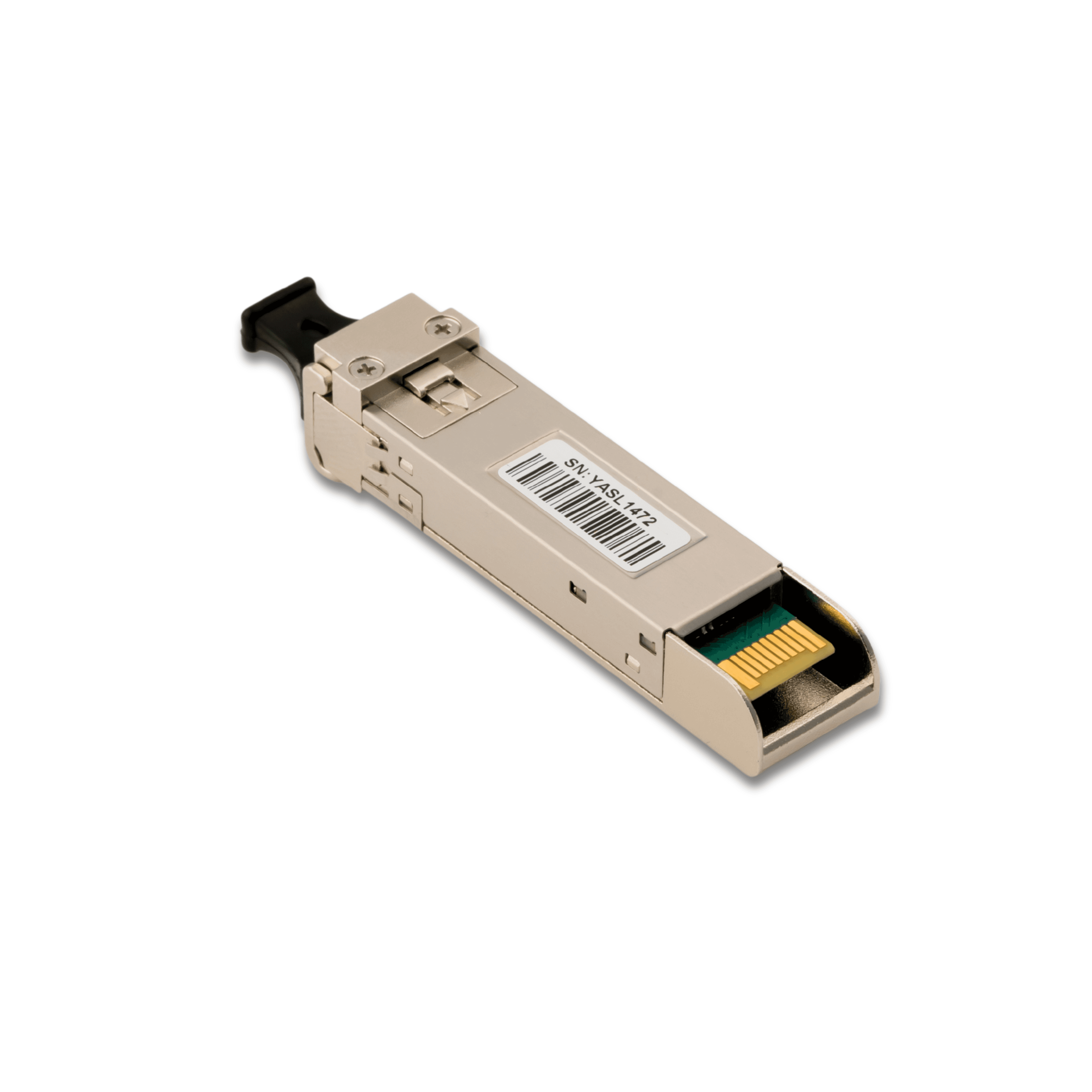

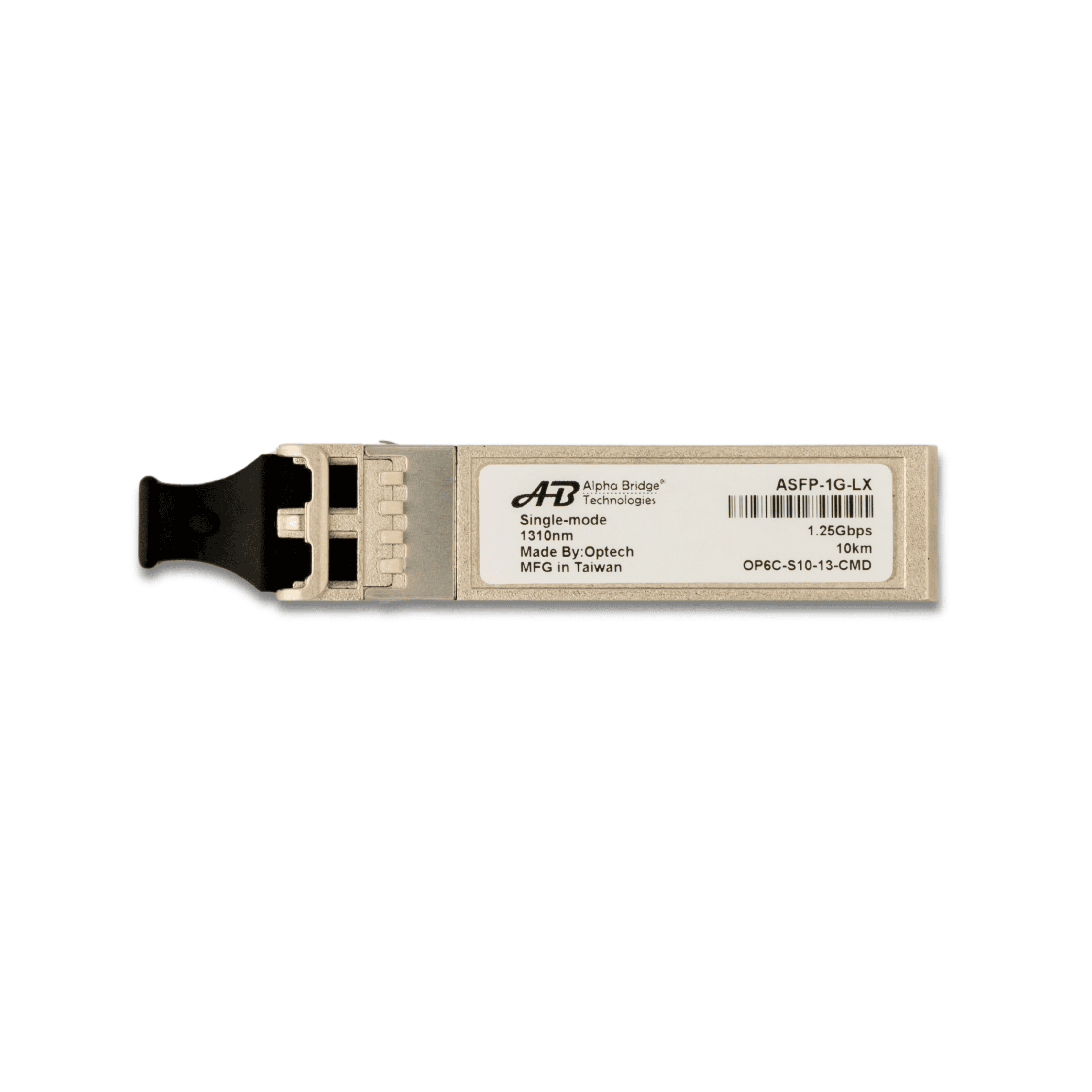

Alpha Bridge Technologies ASFP-1G-LX Optical Transceiver, SFP, 1310nm, 10km, LC Duplex Connector

0 units available

📍 STRINEX Fullfillment Center - Dubai

AED 42.00
5-Year Warranty
30-Day Returns
30-Day Exchange

Quantity

1

Ready to Purchase?

Sign up or log in to add items to cart, place orders, and request quotes

ProductHighlights

Premium features & specifications

Enterprise Grade

The Alpha Bridge ASFP-1G-LX Optical Transceiver (SFP) is a high-performance solution built for long-distance networking. Conforming to IEEE 802.3z Gigabit Ethernet standards, it provides dependable performance over single-mode fiber, offering superior connectivity and efficiency. Enhance your network performance with the Alpha Bridge ASFP-1G-LX, providing robust connectivity and efficiency for your infrastructure.

ADVANCED TECHNOLOGY : Industry-standard SFP transceiver, compliant with IEEE 802.3z Gigabit Ethernet and Fiber Channel 100-SM-LC-L under the SFP Multi-Source Agreement.
PERFORMANCE : 1310nm FP laser supports up to 10km transmission over single-mode fiber, ideal for long-distance networking and enterprise communications.
CONNECTIVITY & DIAGNOSTICS : Features differential LVPECL I/O, a duplex LC connector, and TTL signal detection indicators for reliable data transmission.
POWER & MONITORING : Operates on a 3.3V power supply with low power consumption and hot-pluggable design for seamless deployment.
SAFETY & COMPLIANCE : Class 1 laser, RoHS compliant, meets EN 60825-1 standards, with TTL-level diagnostics for real-time optical signal detection and system stability.

Brand

ALPHA BRIDGE TECHNOLOGIES

Package Dimensions

95mm*47mm*20mm(L*B*H)

Manufacturer

ALPHA BRIDGE TECHNOLOGIES

Item Weight

40 Grams

Product:

ASFPP-1G-LX

Vendor:

ABTPL

Form type:

SFP

Data Rate:

10Gbps

Wavelength:

1310

Reach:

10KM

Source:

FP+PIN

Cable Type:

SMF

Connector:

LC Duplex

TX Power:

-9.5~-3dBm

RX Sens:

<-20dBm

Temperature:

0°C to 70°C

DDM:

yes

Compatibility:

MSA
