Alpha Bridge ASFP-10G-SR

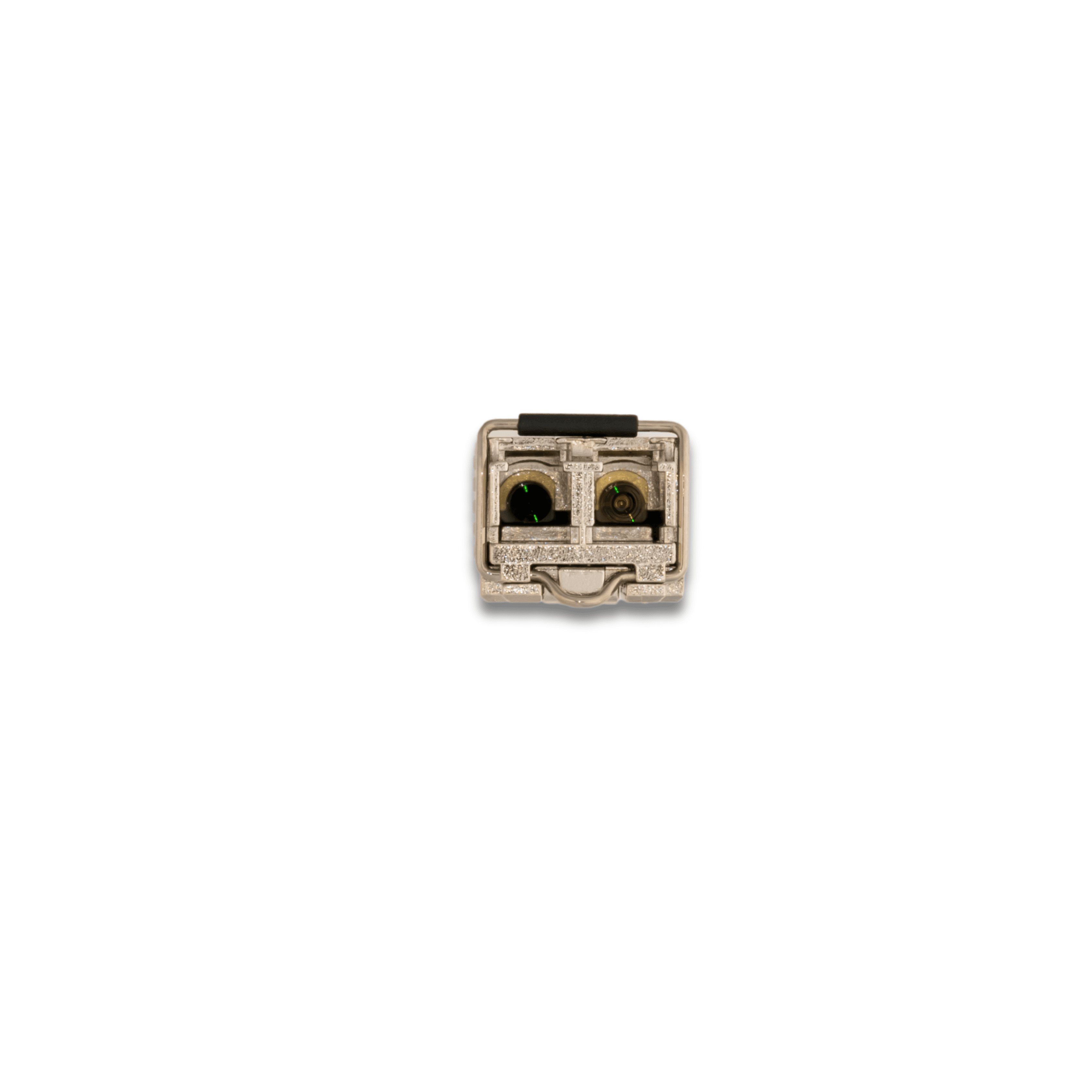

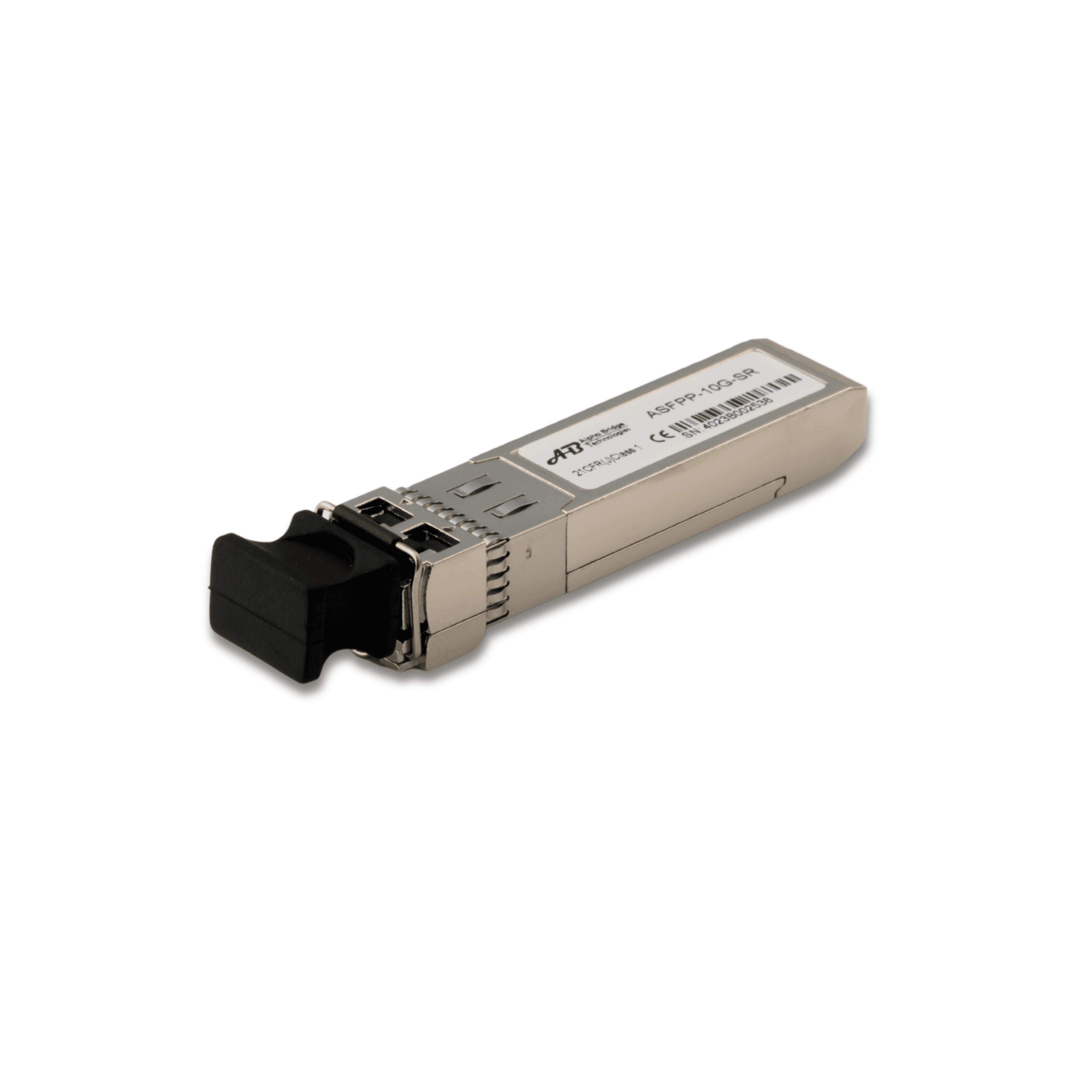

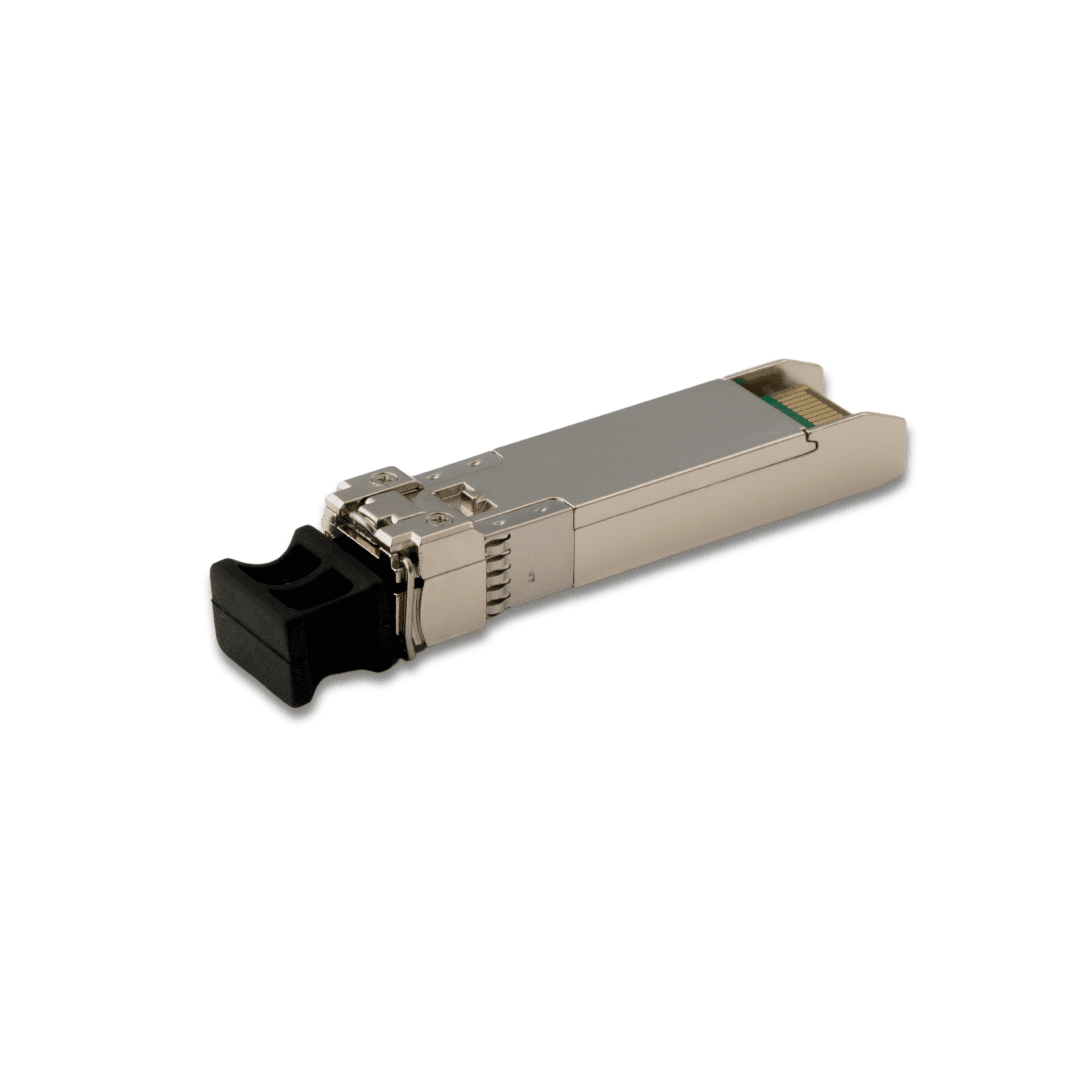

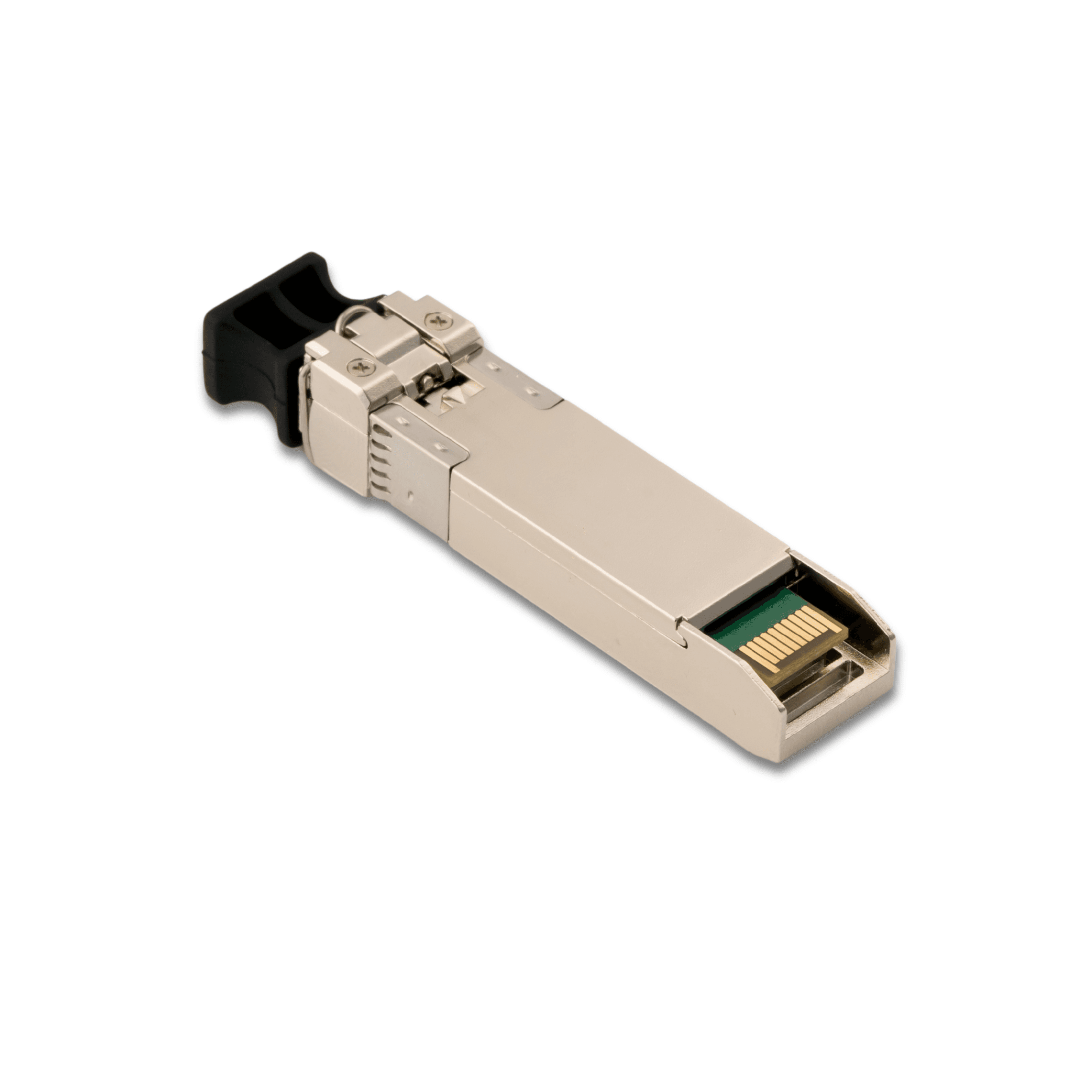

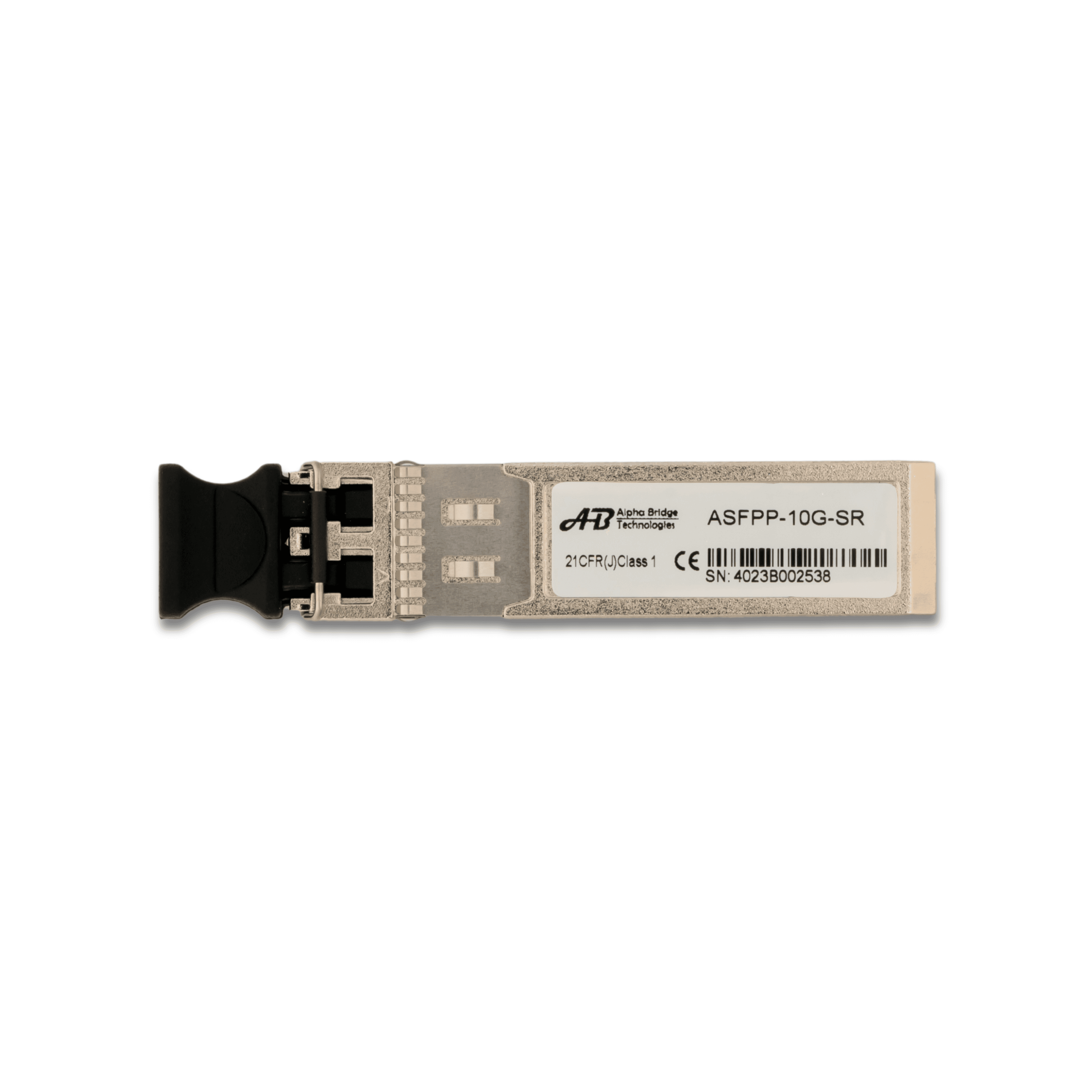

Alpha Bridge Technologies ASFPP-10G-SR Optical Transceiver, SFP, 850nm, 300m, LC Duplex Connector, 1G and 10G Ethernet Standard

9 units available

📍 STRINEX Fullfillment Center - Dubai

AED 99.00

1-Year Warranty

15-Day Returns

15-Day Exchange

Quantity

Ready to Purchase?

Product Highlights

Premium features & specifications

Enterprise Grade

The Alpha Bridge ASFPP-10G-SR Optical Transceiver (SFP) is an advanced solution for high-speed 10Gbps Ethernet connectivity. It meets IEEE 802.3ae 10GBASE-SR/SW standards, delivering reliable short-range networking performance. Enhance your network performance with the Alpha Bridge ASFPP-10G-SR, providing robust connectivity and efficiency for your infrastructure.

ADVANCED TECHNOLOGY: SFP+ transceiver, compliant with SFF-8431 & IEEE 802.3ae 10GBASE-SR/SW. Supports 1G & 10G Ethernet under the SFP MSA.

PERFORMANCE: 850nm VCSEL laser enables up to 300m over multimode fiber. Ideal for high-speed networking & data centers.

CONNECTIVITY: Duplex LC connectors & differential LVPECL I/O ensure stable transmission.

POWER & MONITORING: 3.3V operation, low power, hot-pluggable, with signal detection & diagnostics.

SAFETY & COMPLIANCE: RoHS6, Class 1 laser, EN 60825-1 compliant. TTL diagnostics, 0°C to 70°C operation.

Technical Specifications

Brand

ALPHA BRIDGE TECHNOLOGIES

Package Dimensions

95mm*47mm*20mm(L*B*H)

Manufacturer

ALPHA BRIDGE TECHNOLOGIES

Item Weight

40 Grams

Product:

ASFPP-10G-SR

Vendor:

ABTPL

Form type:

SFP+

Data Rate:

10Gbps

Wavelength:

850nm

Reach:

300m

Source:

VCSEL+PIN

Cable Type:

MMF

Connector:

LC Duplex

TX Power:

-6.5 ~ -1 dBm

RX Sens:

<-11.1 dBm

Temperature:

0°C to 70°C

DDM:

yes

Compatibility:

MSA

Connectivity Solutions

Our optical transceivers provide reliable connectivity solutions for various network architectures.

Data Center

High-performance connectivity for modern data center environments with enterprise-grade reliability.

Enterprise Network

Reliable solutions for enterprise networking infrastructure with seamless integration.

Key Features

High-speed data transmission up to 1Gbps

Extended reach up to 10km on single-mode fiber

Hot-pluggable SFP form factor

Low power consumption

Digital diagnostic monitoring

RoHS compliant

Operating temperature: -40°C to +85°C

Questions & Answers

Q: What is the maximum transmission distance?

A: The ASFP-1G-LX supports transmission distances up to 10km on single-mode fiber.

Q: Is this compatible with Cisco equipment?

A: Yes, this transceiver is MSA compliant and compatible with major networking equipment manufacturers including Cisco, Juniper, HP, and others.

Download Resources

Data Sheet Alpha Bridge ASFP-10G-SR
