Alpha Bridge ASFP-10G-LR

Name: Alpha Bridge ASFP-10G-LR 10G SFP+ 10km Transceiver
Brand: Strinex
SKU: X0-7APW-PMYS
Price: 47 AED
Availability: InStock

Alpha Bridge Technologies ASFPP-10G-LR Optical Transceiver, SFP, 1310nm, 10km, LC Duplex Connector, 1G and 10G Ethernet Standard

4 units available

📍 STRINEX Fullfillment Center - Dubai

AED 47.00

5-Year Warranty

30-Day Returns

30-Day Exchange

Quantity

Ready to Purchase?

ProductHighlights

Premium features & specifications

Enterprise Grade

The Alpha Bridge ASFPP-10G-LR Optical Transceiver (SFP) is a high-performance solution for long-range 10Gbps Ethernet applications. It conforms to IEEE 802.3ae 10GBASE-LR/LW standards, offering extended reach and efficient operation over single-mode fiber. Enhance your network performance with the Alpha Bridge ASFPP-10G-LR, providing robust connectivity and efficiency for your infrastructure.

ADVANCED TECHNOLOGY: High-performance 10Gbps SFP+ transceiver, compliant with SFF-8431, IEEE 802.3ae 10GBASE-LR/LW, and SFF-8472 digital diagnostics.

PERFORMANCE: 1310nm DFB laser & PIN photodetector, supporting up to 10km over single-mode fiber. Compatible with 1G/10G Ethernet.

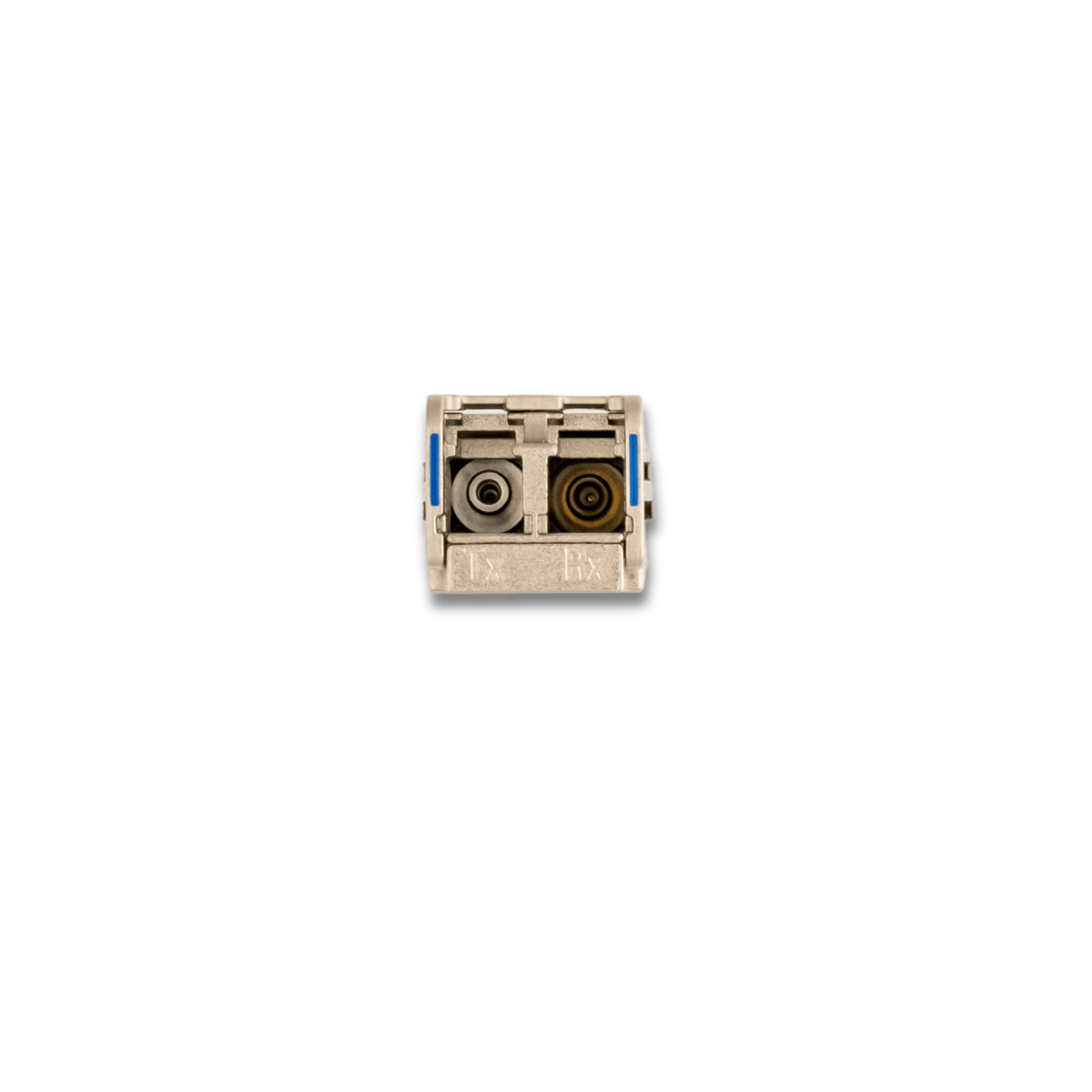

CONNECTIVITY: Duplex LC connectors with differential LVPECL signaling for stable, high-speed communication.

POWER & MONITORING: Runs on 3.3V, hot-pluggable, with built-in diagnostics and signal detection.

SAFETY & COMPLIANCE: RoHS compliant, EN 60825-1 certified, TTL-level diagnostics. Operates from 0°C to 70°C.

Brand

ALPHA BRIDGE TECHNOLOGIES

Package Dimensions

95mm*47mm*20mm(L*B*H)

Manufacturer

ALPHA BRIDGE TECHNOLOGIES

Item Weight

40 Grams

Product:

ASFPP-10G-LR

Vendor:

ABTPL

Form type:

SFP+

Data Rate:

10Gbps

Wavelength:

1310

Reach:

10KM

Source:

DFB+PIN

Cable Type:

SMF

Connector:

LC Duplex

TX Power:

-8.2 ~ -0.5 dBm

RX Sens:

<-14.4 dBm

Temperature:

0°C to 70°C

DDM:

yes

Compatibility:

MSA
